1 Data information

EMODnet Vessel Density maps were created by Cogea in 2019 in the framework of EMODnet Human Activities, an initiative funded by the EU Commission. The maps are based on AIS data purchased by Collecte Localisation Satellites (CLS) and ORBCOMM. The maps show shipping density in 1km*1km cells of a grid covering all EU waters (and some neighbouring areas). Density is expressed as hours per square kilometre per month. The following ship types are available:0 Other, 1 Fishing, 2 Service, 3 Dredging or underwater ops, 4 Sailing, 5 Pleasure Craft, 6 High speed craft, 7 Tug and towing, 8 Passenger, 9 Cargo, 10 Tanker, 11 Military and Law Enforcement, 12 Unknown and All ship types. Data are available by month of year. Yearly averages are also available.

1.1 Metadata

Access metadata from dataset’s landing page

2 Geographical extent

2.1 Coordinates

## [1] "West-Longitude: 23.21"

## [1] "South-Latitude: 37.6"

## [1] "East-Longitude: 23.72"

## [1] "North-Latitude: 37.88"

2.2 Defined area

Map tiles by Stamen Design, under CC BY 3.0. Data by OpenStreetMap, under ODbL.

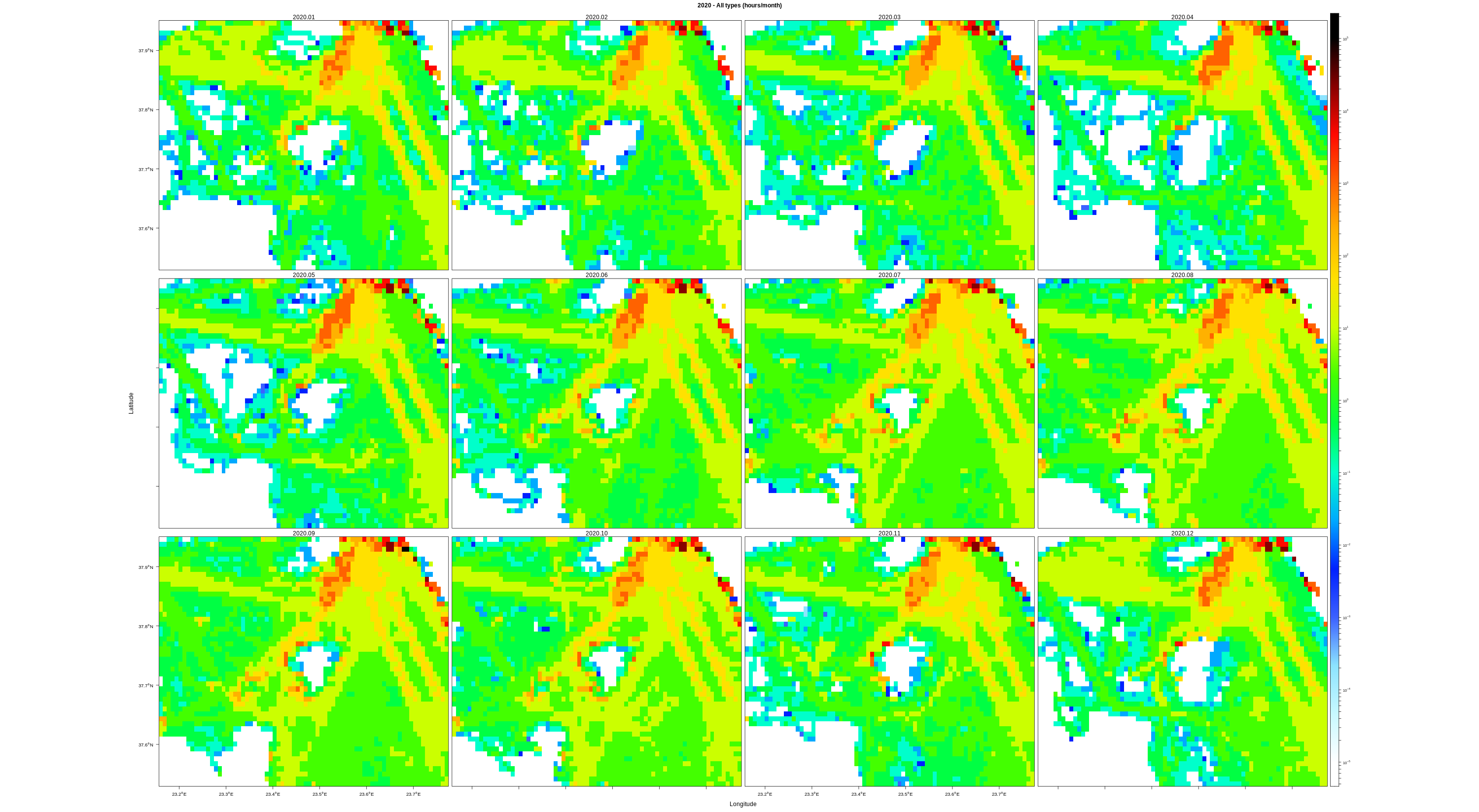

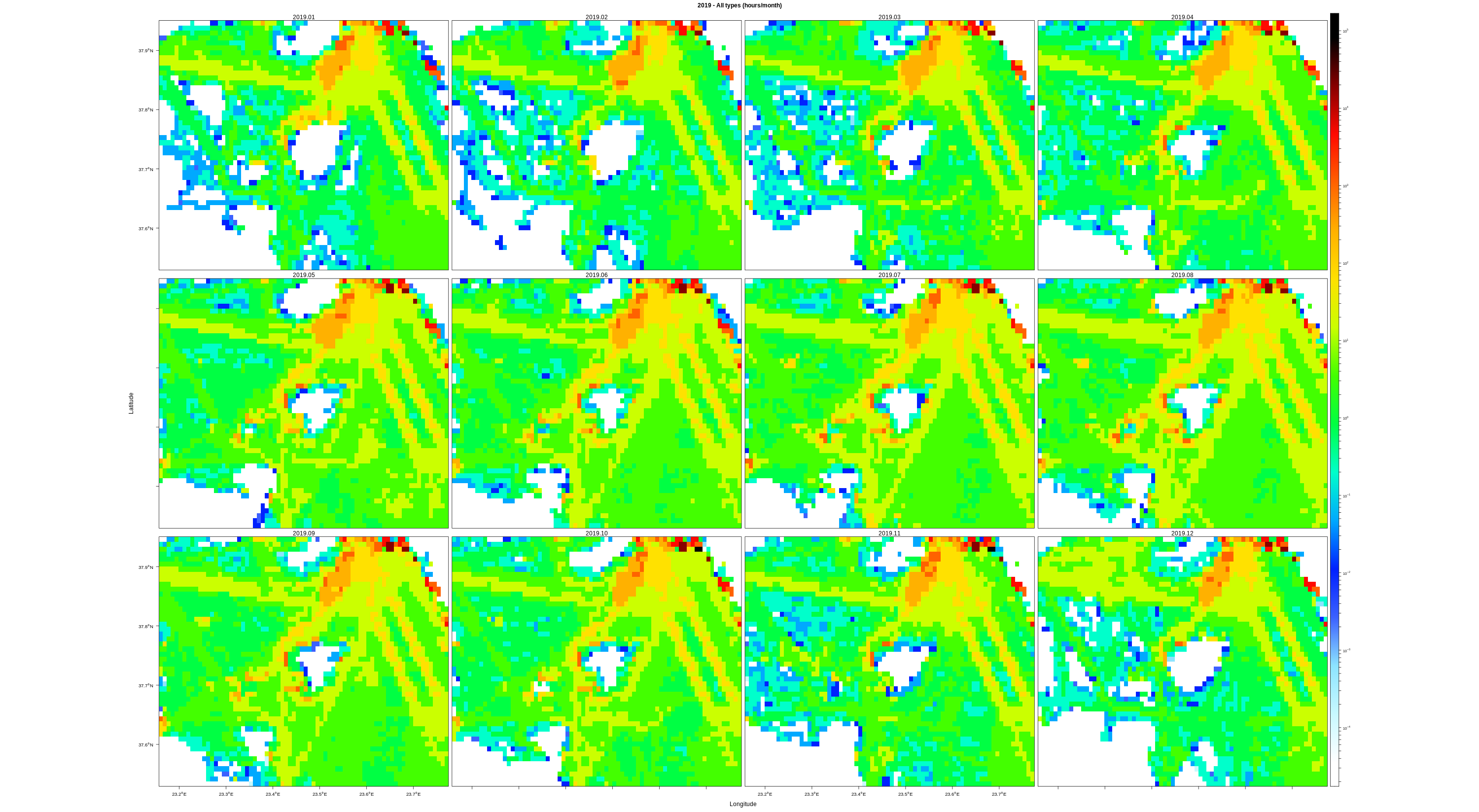

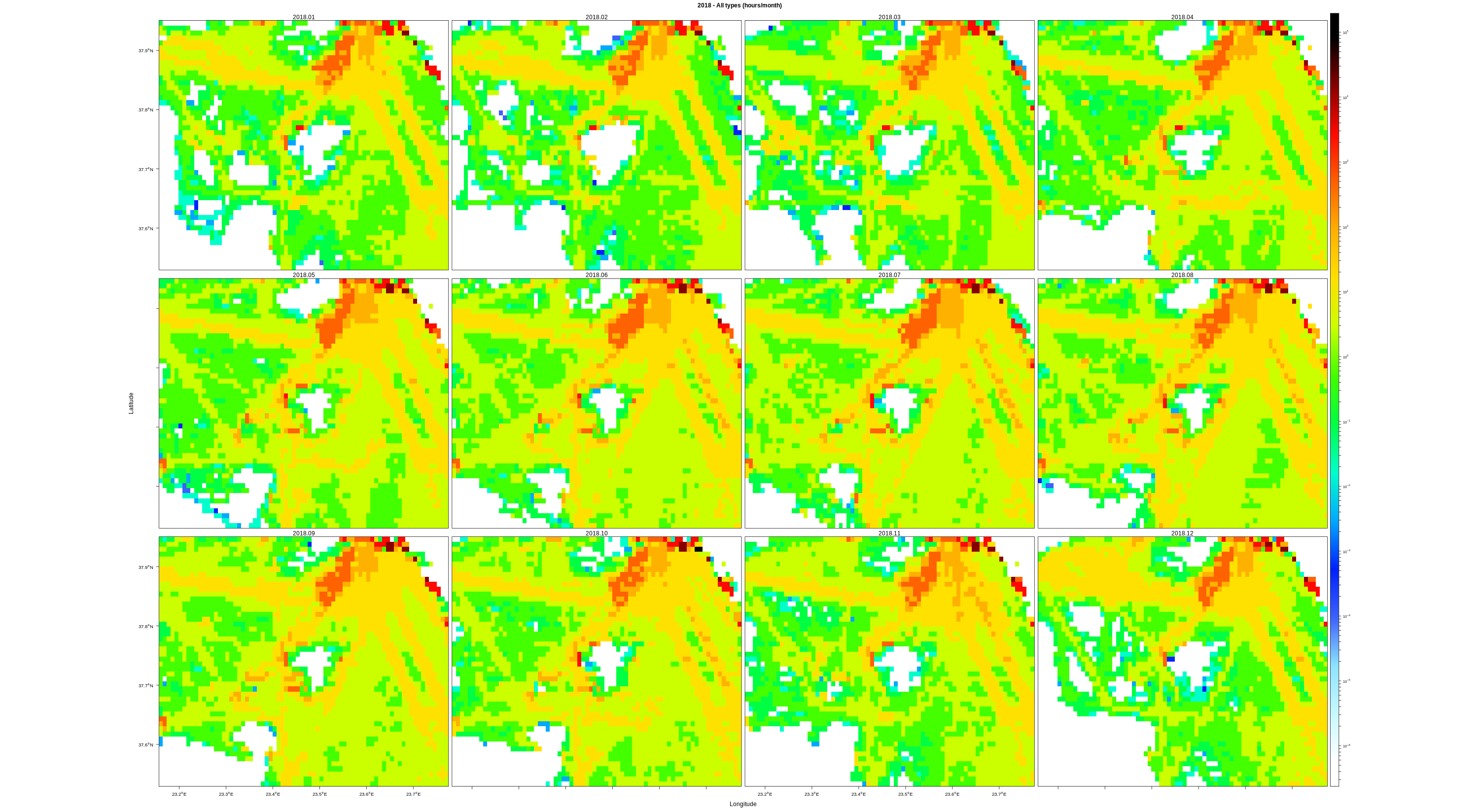

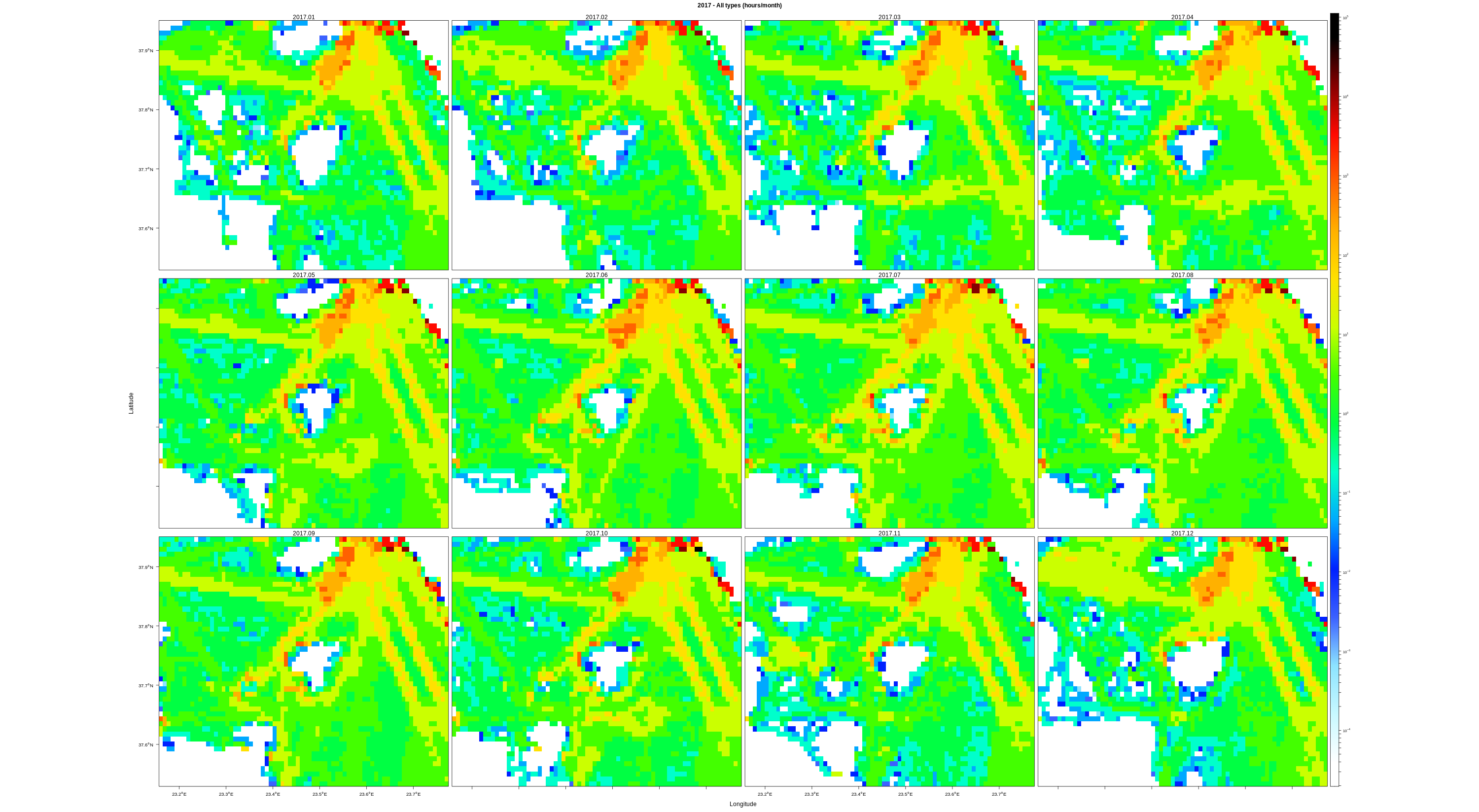

3 Vessel density (All types) 2017-2020

3.1 Analysis (graphs)

3.1.5 Average

3.2 Analysis (data)

Monthly means (hours/km²)

Month	Year_2017	Year_2018	Year_2019	Year_2020
1	12.29372	13.88647	14.90952	18.32737
2	13.77209	13.95677	14.45258	15.46635
3	14.88657	15.22908	18.99404	14.89441
4	17.19912	20.11612	19.84305	18.20065
5	16.66178	21.69363	26.47229	18.66341
6	22.57966	25.25176	29.89575	20.40974
7	22.62881	28.11247	33.09456	25.83657
8	22.63041	27.47761	33.55560	30.96084
9	19.59216	23.46327	26.05325	29.80740
10	19.22480	21.68698	23.89052	30.47355
11	15.27116	17.35238	19.42231	25.16759
12	17.58666	12.85269	17.12957	22.06026

4 Access data

Download data for the defined geographical extent:

Year	Geotiff_2017	Geotiff_2018	Geotiff_2019	Geotiff_2020
Jan	1	1	1	1
Feb	2	2	2	2
Mar	3	3	3	3
Apr	4	4	4	4
May	5	5	5	5
June	6	6	6	6
Jul	7	7	7	7
Aug	8	8	8	8
Sep	9	9	9	9
Oct	10	10	10	10
Nov	11	11	11	11
Dec	12	12	12	12

5 Interactive map

Visualise and access data with Openlayer:

- 2017 average
- 2018 average
- 2019 average
- 2020 average

6 Open-notebook

Access MyBinder.org/Marine-Analyst virtual environment.
More info at Marine-Analyst.eu

This document produced by Marine-analyst.eu is licensed under CC BY-NC 4.0

Dataset: Vessel density (All) 2017-2020

Document produced by http://www.marine-analyst.eu

26 July, 2021
